Tubular Motors for Roller Shutters

torqen-logo

China Develop manufactures TORQEN tubular motors from 25 mm to 92 mm and 1.1 to 550 Nm for roller shutters, blinds, awnings and industrial doors. CE, CCC and TÜV certified, 230V or 110V, in standard, manual-override and electronic-limit versions, with OEM supply.

Tubular Motor Specifications Compared

Five TORQEN tubular motor series from 25 mm to 92 mm. Choose by tube diameter and the torque your curtain needs, then open the series for every torque option.

Series

Tube Ø

Torque

Voltage

Power

Speed

Type

Protection

25EDC

25 mm

1.1 Nm

12V DC

14 W

25 rpm

Electronic limit

IP44

35S

35 mm

6–13 Nm

230V / 50Hz

140 W

14–28 rpm

Standard

IP44

45S

45 mm

10–60 Nm

230V / 50Hz

155–262 W

10–28 rpm

Standard

IP44

59M

59 mm

80–180 Nm

230V / 50Hz

330–450 W

7–12 rpm

Manual override

IP44

92LFC

92 mm

170–550 Nm

230V / 50Hz

800–1,020 W

6–16 rpm

Manual override, electronic limit

IP44

110V/60Hz versions are available for the 35S, 45S, 59M and 92 mm series. Running time S2 4 min (25EDC: S2 1 min). CE, CCC and TÜV approved. 5-year warranty.

Residential and commercial roller shutters

Roller blinds and smart shading systems

Awnings and outdoor sunshades

Projection screens for offices, schools and home theatres

Industrial and high-speed doors (92 mm series)

Applications for Tubular Motors

Residential and commercial roller shutters

Roller blinds and smart shading systems

Awnings and outdoor sunshades

Projection screens for offices, schools and home theatres

Industrial and high-speed doors (92 mm series)

Applications for Tubular Motors

Every tube size from 25 to 92 mm from one factory, so you can cover blinds, awnings, shutters and industrial doors with one supplier. CE, CCC and TÜV certified, quiet running (50–55 dB on the 59 mm series) and a 5-year warranty.

Why Choose China Develop Tubular Motors

Every tube size from 25 to 92 mm from one factory, so you can cover blinds, awnings, shutters and industrial doors with one supplier. CE, CCC and TÜV certified, quiet running (50–55 dB on the 59 mm series) and a 5-year warranty.

Why Choose China Develop Tubular Motors

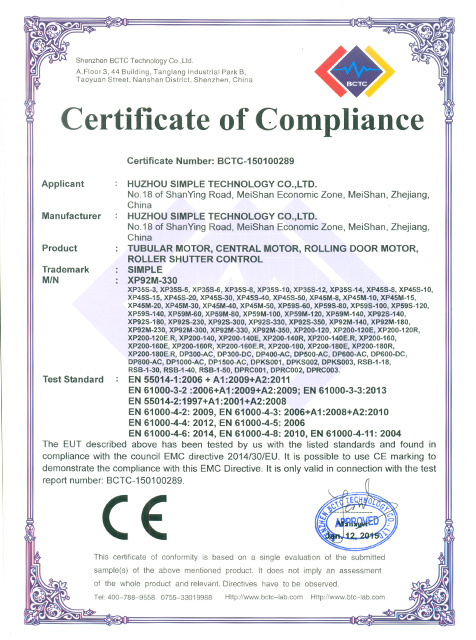

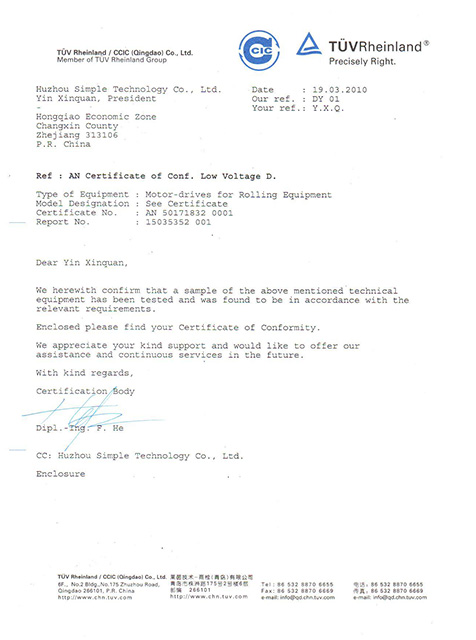

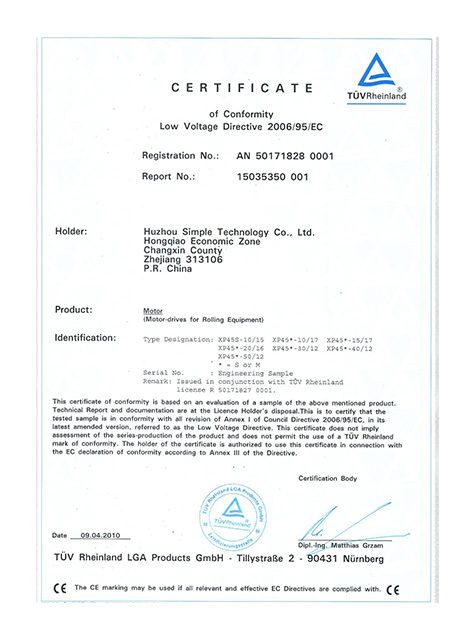

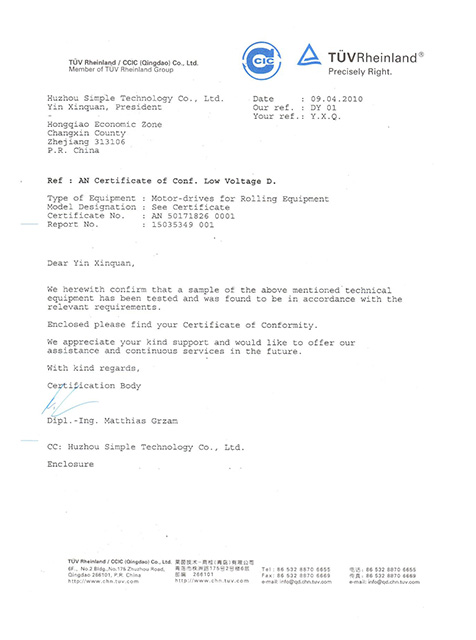

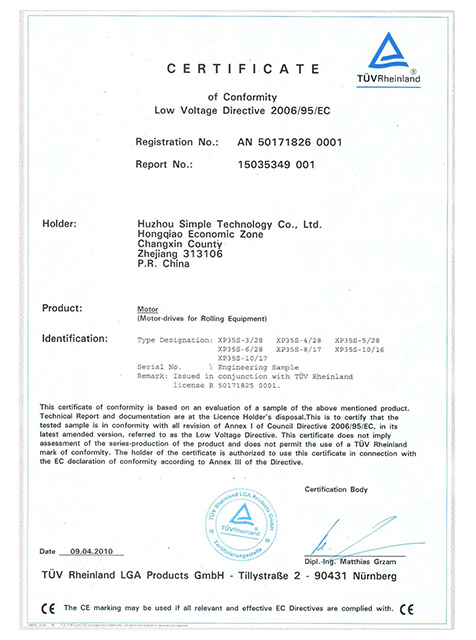

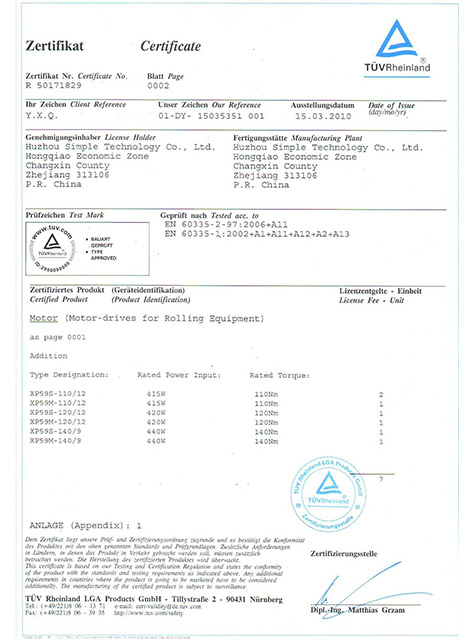

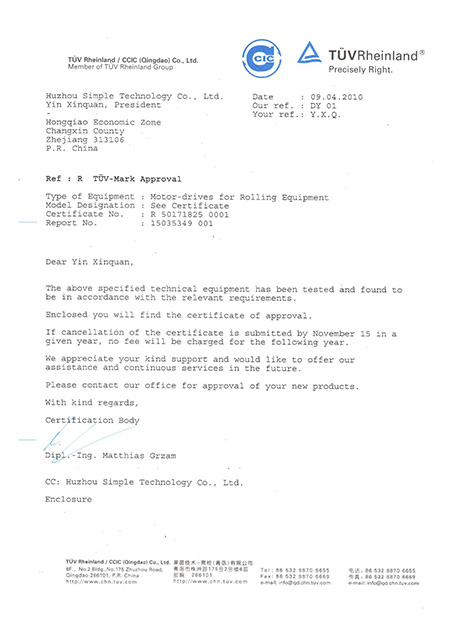

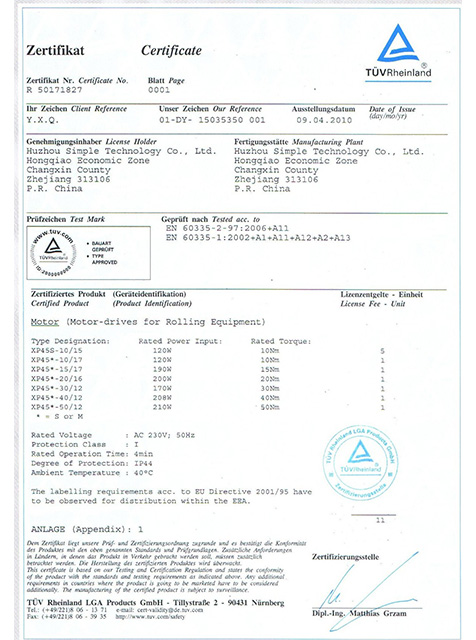

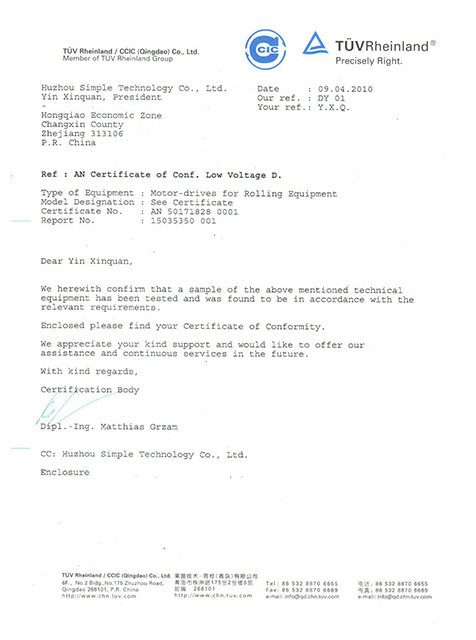

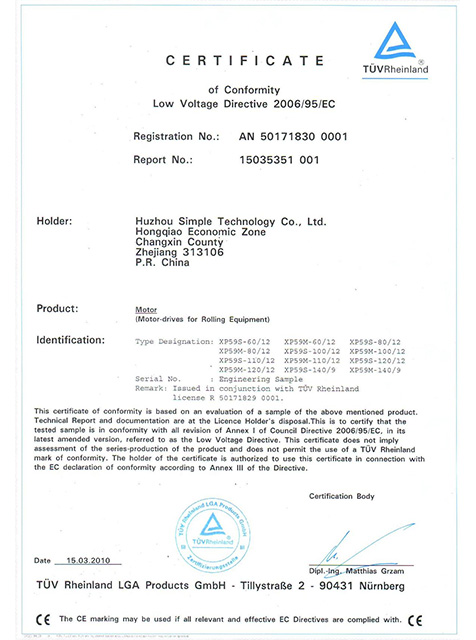

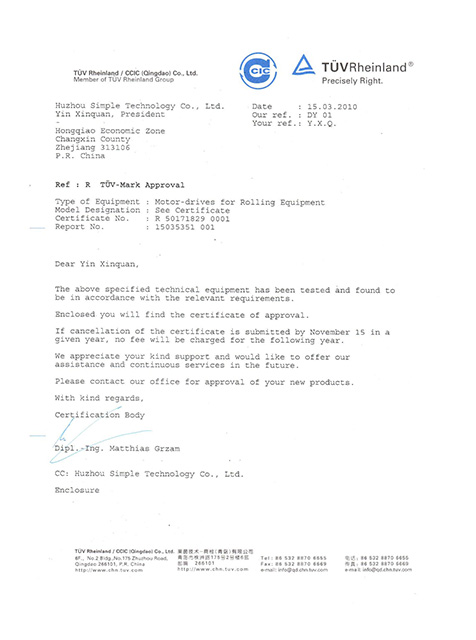

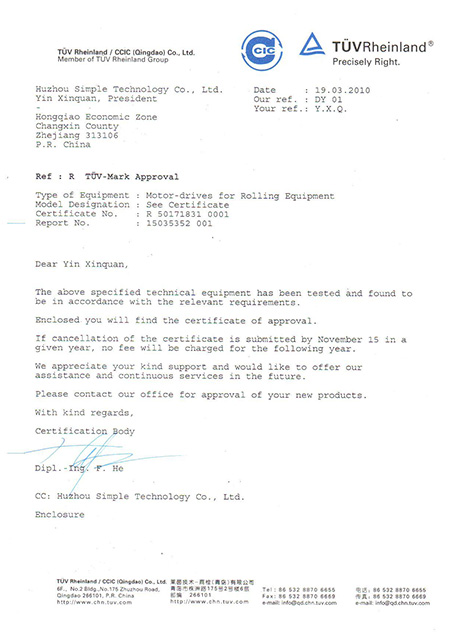

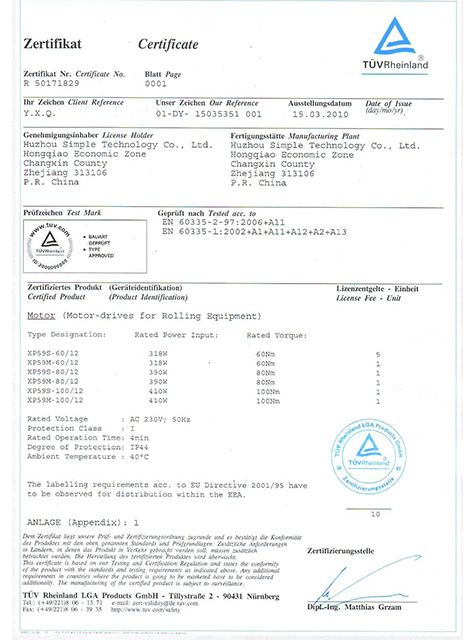

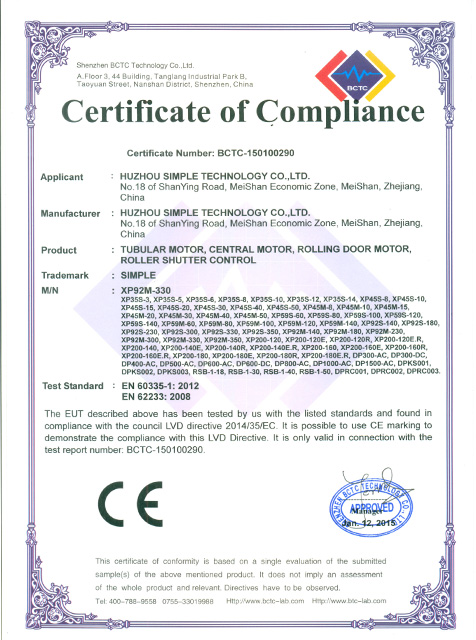

TORQEN tubular motors are CE, CCC and TÜV approved. The 92 mm series is TÜV Rheinland certified and produced to ISO 9001, SGS, CE and RoHS requirements. Each motor has thermal protection and IP44 rating.

Certifications & Quality

TORQEN tubular motors are CE, CCC and TÜV approved. The 92 mm series is TÜV Rheinland certified and produced to ISO 9001, SGS, CE and RoHS requirements. Each motor has thermal protection and IP44 rating.

Certifications & Quality

Private label on motor and packaging, 230V or 110V, mechanical or electronic limits, manual override, cable length and control options. Samples are available; contact us for MOQ and lead time on your model.

OEM & ODM Options

Private label on motor and packaging, 230V or 110V, mechanical or electronic limits, manual override, cable length and control options. Samples are available; contact us for MOQ and lead time on your model.

OEM & ODM Options

FAQs

Answers to Common Questions about Tubular Motors

FAQs

Answers to Common Questions about Tubular Motors

We’re just a form away—send us your question, and we’ll be happy to help!

We’re just a form away—send us your question, and we’ll be happy to help!

Which tubular motor size do I need?

Match the motor to the tube: 25 mm for blinds and screens, 35 mm for light shutters, awnings and screens, 45 mm for most roller shutters and large awnings, 59 mm for heavy shutters with manual override, and 92 mm for industrial and high-speed doors.

How do I choose the right torque?

Torque depends on the curtain weight and the tube diameter. Send us the curtain width, height and material, and we will recommend the torque and series.

What is the difference between mechanical and electronic limits?

Mechanical limits (35S, 45S, 59M) are set on site with the adjustment on the motor head. Electronic limits (25EDC, 92LFC) give more precise positioning and suit smart and automated control.

What does manual override mean?

Manual-override motors (59M and 92 mm series) can be operated by hand with a crank, so the shutter can still be opened during a power cut.

Which certifications do your tubular motors have?

CE, CCC and TÜV. The 92 mm series is also produced to ISO 9001 and meets SGS and RoHS requirements.

Which voltages are available?

230V/50Hz is standard. 110V/60Hz is available for the 35S, 45S, 59M and 92 mm series, and the 25EDC runs on 12V DC.

Can you make tubular motors under our brand?

Yes. We offer OEM and ODM supply with your brand on the motor and packaging, plus limit type, voltage, cable length and control options.

What warranty do you offer?

TORQEN tubular motors carry a 5-year warranty, with online technical support and spare parts.

How do I get a quote?

Use the form on this page or our contact page. Tell us the series or curtain size, voltage, quantity and destination country, and our sales team will reply with pricing and lead time.
